一、虚拟机网络模式介绍

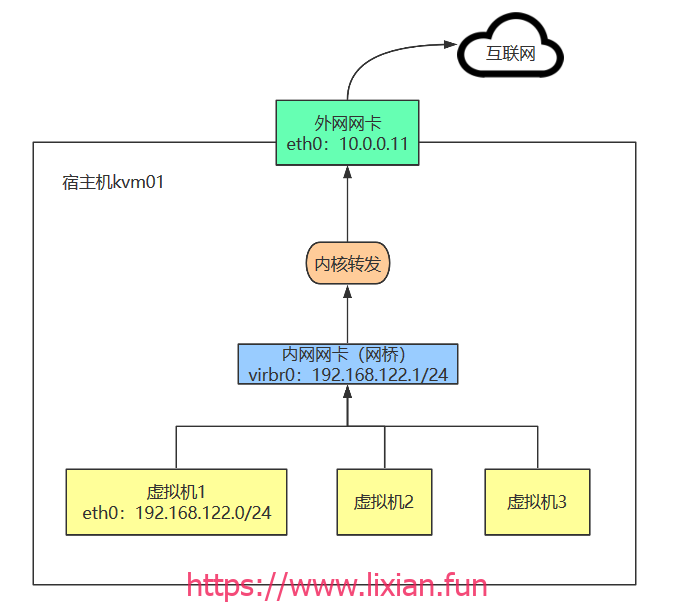

1.Net模式

默认情况下,虚拟网络交换机以NAT模式运行。他们使用IP伪装而不是SNAT(Source-NAT)或DNAT(Destination-NAT)。IP伪装使得连接的guest虚拟机可以使用主机物理机器IP地址与任何外部网络进行通信。默认情况下,虚拟网络交换机在NAT模式下运行时,放置在主机物理机外部的计算机无法与其中的guest虚拟机进行通信
Kvm虚拟机的桥接网络实战【显哥出品,必为精品】

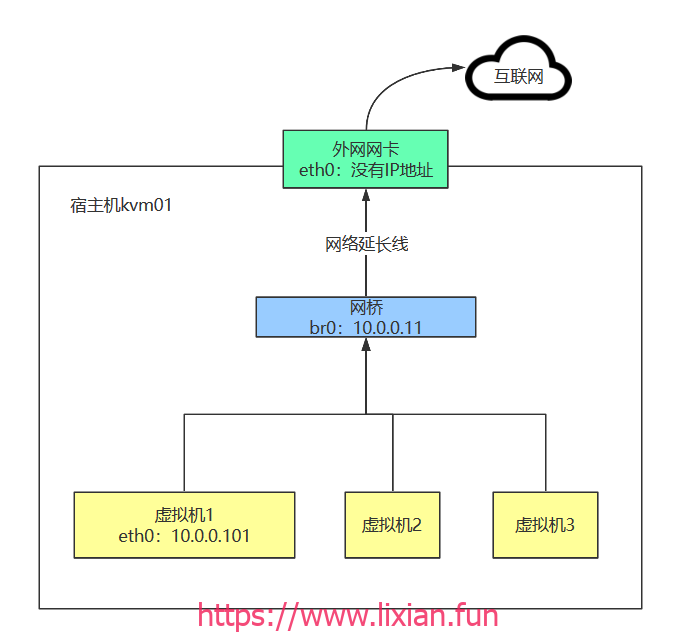

2.桥接模式

在使用桥接模式时,所有虚拟机都好像与主机物理机器在同一个子网内。同一物理网络中的所有其他物理机器都知道这些虚拟机,并可以访问这些虚拟机。桥接操作在OSI网络模型的第2层。
在中间件(hypervisor )中可以使用多个物理接口,通过绑定把他们连接在一起,然后把它添加的网桥,同时虚拟机也被添加到这个网桥,绑定操作有多种模式,只有少数这些模式可以与虚拟客机正在使用的桥接器配合使用。
Kvm虚拟机的桥接网络实战【显哥出品,必为精品】

二、桥接网络搭建实战

1.创建一个桥接网络

[root@kvm01-server /opt]# virsh   iface-bridge   eth0  br0
Created bridge br0 with attached device eth0
Bridge interface br0 started

[root@kvm01-server /opt]# ip a
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast master br0 state UP group default qlen 1000
    link/ether 00:0c:29:0e:90:4d brd ff:ff:ff:ff:ff:ff

20: br0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default qlen 1000
    link/ether 00:0c:29:0e:90:4d brd ff:ff:ff:ff:ff:ff
    inet 10.0.0.11/24 brd 10.0.0.255 scope global br0
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:fe0e:904d/64 scope link
       valid_lft forever preferred_lft forever

[root@kvm01-server /opt]# cat  /etc/sysconfig/network-scripts/ifcfg-eth0
DEVICE=eth0
ONBOOT=yes
BRIDGE="br0"
[root@kvm01-server /opt]# cat  /etc/sysconfig/network-scripts/ifcfg-br0
DEVICE="br0"
ONBOOT="yes"
TYPE="Bridge"
BOOTPROTO="none"
IPADDR="10.0.0.11"
NETMASK="255.255.255.0"
GATEWAY="10.0.0.2"
STP="on"
DELAY="0"

2.修改虚拟机的配置文件

[root@kvm01-server /opt]# virsh edit  web01

     74     <interface type='bridge'>		#修改网络类型
     75       <mac address='52:54:00:6b:e9:89'/>
     76       <source bridge='br0'/>			#修改网卡名称

3.启动并连接虚拟机

[root@kvm01-server /opt]# virsh  start   web01
Domain web01 started

[root@kvm01-server /opt]# virsh  console  web01
Connected to domain web01
Escape character is ^]

4.虚拟机操作测试

#修改网络信息
[root@kvm ~]# vi  /etc/sysconfig/network-scripts/ifcfg-eth0
TYPE=Ethernet
BOOTPROTO=none
NAME=eth0
DEVICE=eth0
ONBOOT=yes
IPADDR=10.0.0.101
PREFIX=24
GATEWAY=10.0.0.2
DNS1=10.0.0.2

#重启网络
[root@kvm ~]# systemctl  restart  network


[root@kvm ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
    link/ether 52:54:00:6b:e9:89 brd ff:ff:ff:ff:ff:ff
    inet 10.0.0.101/24 brd 10.0.0.255 scope global noprefixroute eth0
       valid_lft forever preferred_lft forever
    inet6 fe80::5054:ff:fe6b:e989/64 scope link
       valid_lft forever preferred_lft forever


[root@kvm ~]# cat  /etc/resolv.conf
# Generated by NetworkManager
nameserver 10.0.0.2

[root@kvm ~]# ping baidu.com
PING baidu.com (220.181.38.148) 56(84) bytes of data.
64 bytes from 220.181.38.148 (220.181.38.148): icmp_seq=1 ttl=128 time=27.3 ms
64 bytes from 220.181.38.148 (220.181.38.148): icmp_seq=2 ttl=128 time=28.3 ms
64 bytes from 220.181.38.148 (220.181.38.148): icmp_seq=4 ttl=128 time=27.3 ms
64 bytes from 220.181.38.148 (220.181.38.148): icmp_seq=5 ttl=128 time=31.1 ms
--- baidu.com ping statistics ---
5 packets transmitted, 4 received, 20% packet loss, time 13046ms
rtt min/avg/max/mdev = 27.346/28.536/31.141/1.562 ms

#关闭NetworkManager
[root@kvm ~]# systemctl  stop NetworkManager
[root@kvm ~]# systemctl  disable NetworkManager

#远程连接虚拟机
[C:\~]$ ssh  root@10.0.0.101
Connecting to 10.0.0.101:22...
Connection established.
To escape to local shell, press 'Ctrl+Alt+]'.

Last login: Thu Jul 30 16:50:01 2020
[root@kvm ~]#
